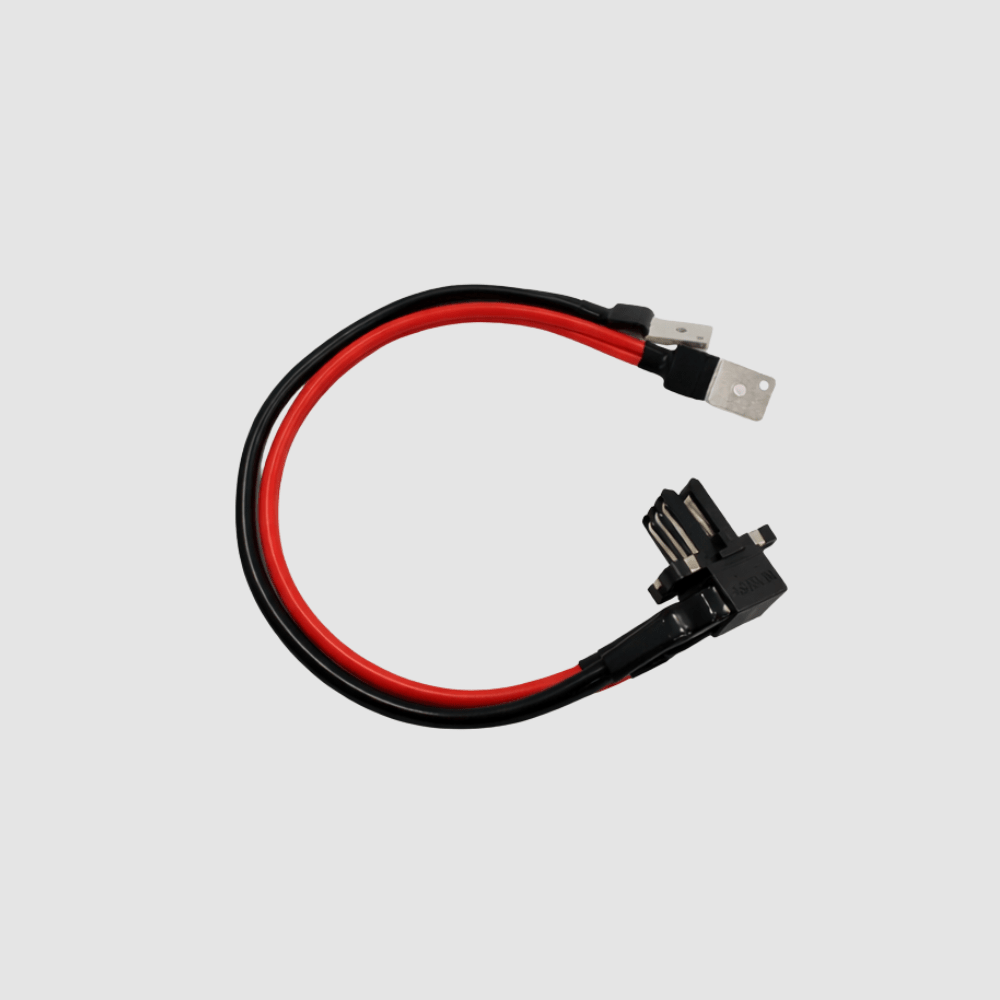

BusFlow® 250 left-angle to dual-lug cable assembly (OCP ORv3 Compliant)

Key Features

• High-current cable assembly for rack power distribution
• Current rating up to 250A
• Low contact resistance to reduce power loss
• Compatible with 6.0 mm busbars
• Left-angle cable exit for cleaner routing
• Silicone insulation

Key Specifications

• 6 AWG UL3132 silicone-insulated cable
• Conductor: dual 6 AWG per polarity
• Contact plating: silver over nickel
• Lug material: C1100 copper alloy, silver-plated over nickel
• 100% open/short tested
• Compliance: RoHS, halogen-free

Applications

• OCP and open-rack DC busbar power distribution for AI and cloud servers
• Busbar-to-cable interconnect in power shelves and custom rack power systems
• High-current DC distribution links between busbars, PSUs, and server nodes
