BusFlow® to Dual Power Connector Cable Assembly

Key Features

• BusFlow® interface to dual power connector outputs

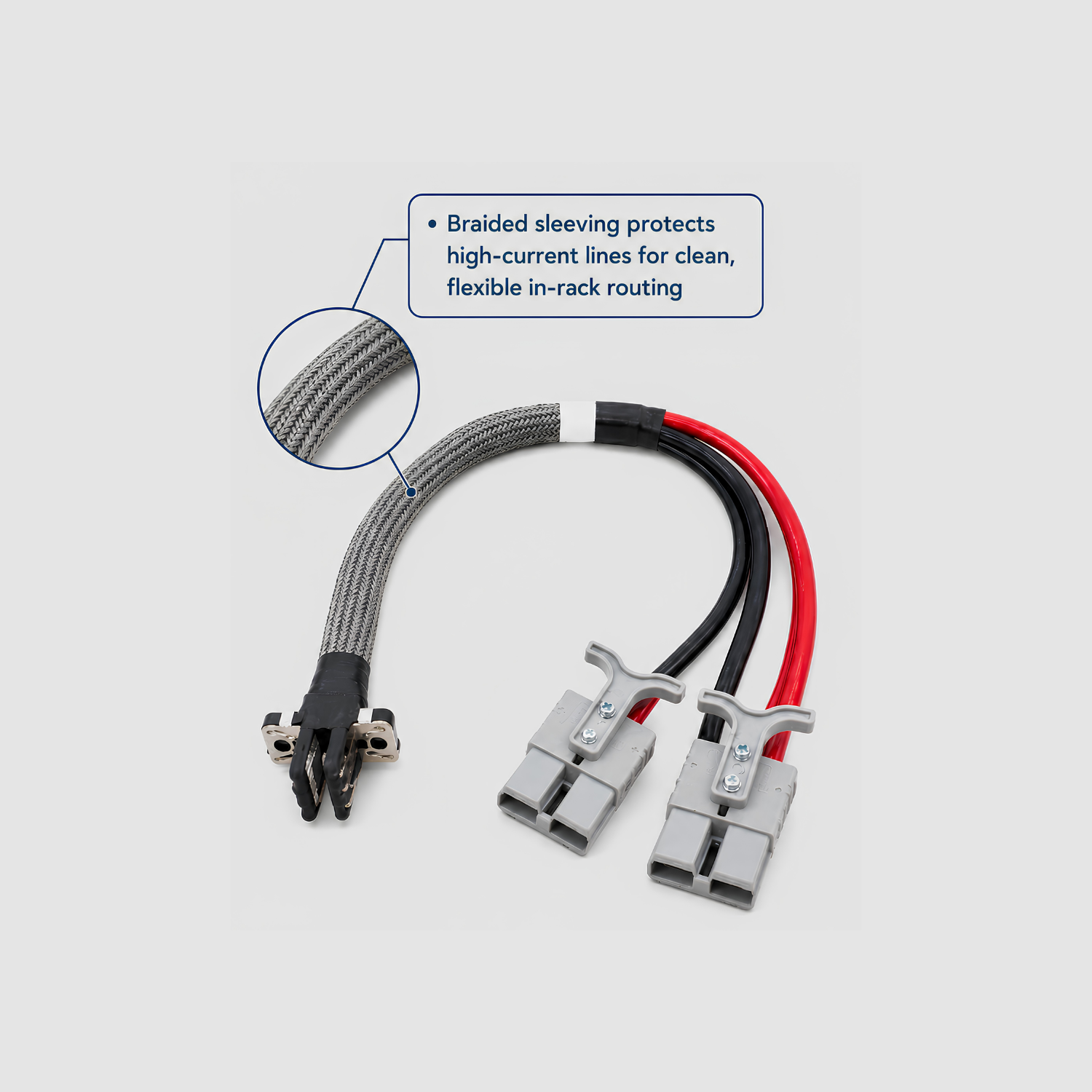

• Braided sleeving protects high-current lines for clean, flexible routing
• 4AWG power cable construction for high-current power transfer
• Dual downstream connector outputs support flexible rack-level integration
• Designed for AI server and rack power distribution applications

Key Specifications

• Current Rating: 170A
• Dielectric Withstanding Voltage: 1000V
• Operating Temperature: -40°C to 125°C
• Durability: 50 mating cycles
• Cable: 4AWG UL10198 wire
• Mating Busbar: 6.00 ± 0.20 mm silver-plated busbar
• Compliance: RoHS & HF compliant
