ASTRON 衡星科技股份有限公司

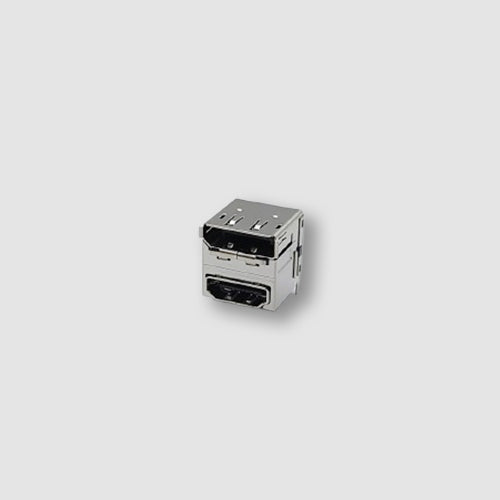

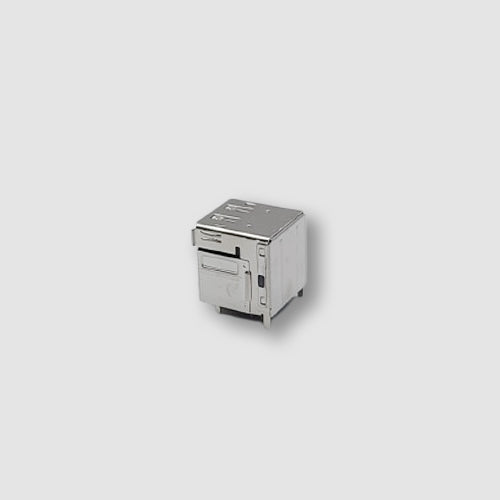

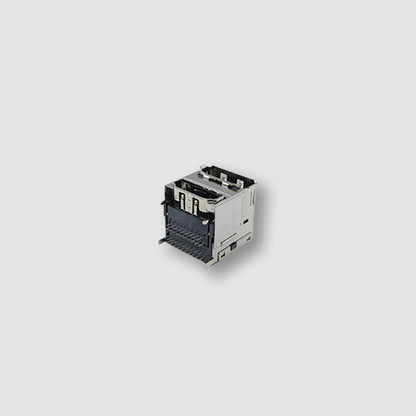

Combo Connector, Displayport 2.0+HDMI 2.1 W/O Post,Female,DIP Type
Combo Connector, Displayport 2.0+HDMI 2.1 W/O Post,Female,DIP Type
PN:1852139-0N072T-H
View full details



規格描述
Characteristic | Description (Astron) |
---|---|
Product Description | Combo Connector, Displayport 2.0+HDMI 2.1 W/O Post,Female,DIP Type |
Component Type | Receptacle |
Orientation | Right Angle |
Physical Characteristic | |
Case Material | LCP |
Plating Material on Contact Area | Gold |
Durability | 5000 |
Case Color | Black |
Electrical Characteristic | |
Current Rating | 0.5A |
Max. Voltage | 40v |
Solder Process Type | DIP |
Environment Characteristic | |
RoHS/ Halogen Free(HF) Compliance | Rohs, Halogen Free |
Others | |
Packaging | Tape Reel |
