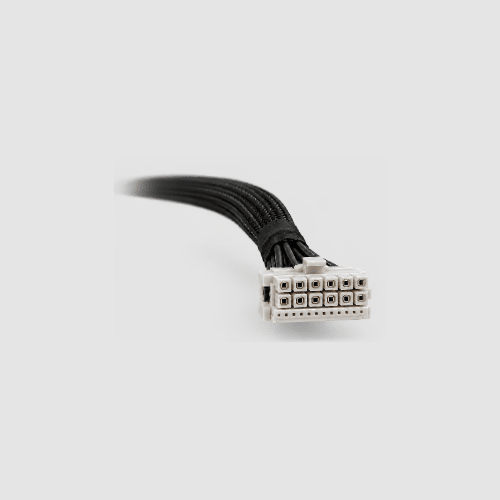

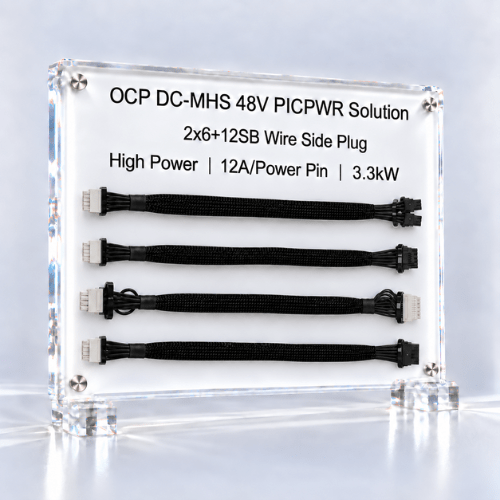

48V 2x6+12SB PICPWR Cable Connector

Key Specifications

• Max Power: 3.3 kW at 46 V
• Configuration: 6 Supply + 6 Return + 12 Sideband
• Total Current: 72 A Total Supply / 72 A Total Return
• Operating Voltage: Up to 60 V
• Supply/Return Wire: 14 AWG or 16 AWG
• Color: Natural
• PCB Footprint: Shared Vertical / Right-Angle Footprint

Features

• Space-efficient 48 V design
• 14 AWG or 16 AWG supply/return wiring
• 2×6+12SB-specific keying for mismatch protection
• Natural color coding for clear 48 V PICPWR interface identification
• Controlled mating sequence
• Fully shrouded latch with 45 N minimum retention
