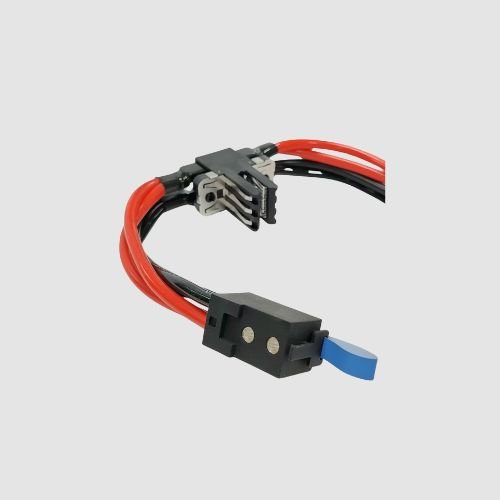

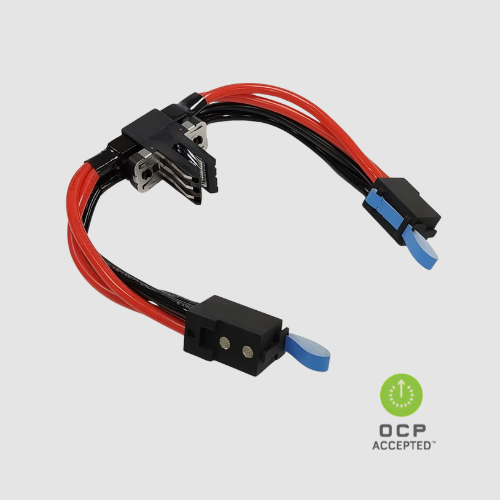

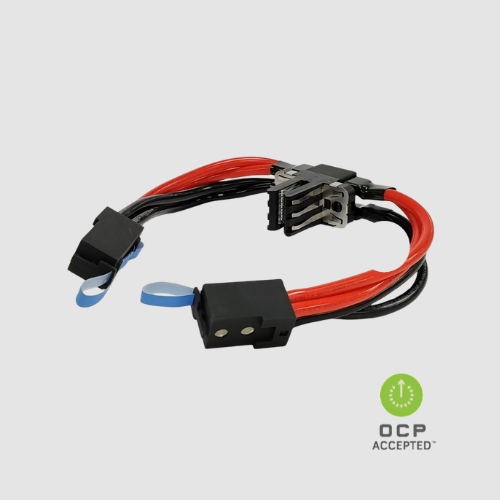

BusFlow® Dual-Exit Cable Assembly (OCP ORv3 Compliant)

Key Features

• BusFlow® high-current busbar-to-cable for OCP DC racks
• 250A total (125A/cable¹) – powers AI server shelves
• UL3132 6AWG silicone: flexible routing, reliable 300V DC
• Silver-plated contacts: low resistance, 50-cycle durability
• 100% open/short + 1000V hi-pot tested
• Integrated pull-ring for easy handling and rack installation

Key Specifications

• Voltage Rating (Cable): 300 V (UL3132, 6 AWG)
• Dielectric Withstanding Voltage: 1000 V
• Operating Temperature (Assembly): -40°C to 125°C
• Wire Type: UL3132, 6 AWG, silicone insulation, 300 V, 150°C, VW-1, OD 6.5 mm (red/black)

Applications

• OCP and open-rack DC busbar power distribution for AI and cloud servers
• Busbar-to-cable interconnect in power shelves and custom rack power systems
• High-current DC distribution links between busbars, PSUs, and server nodes
