| Product Description |

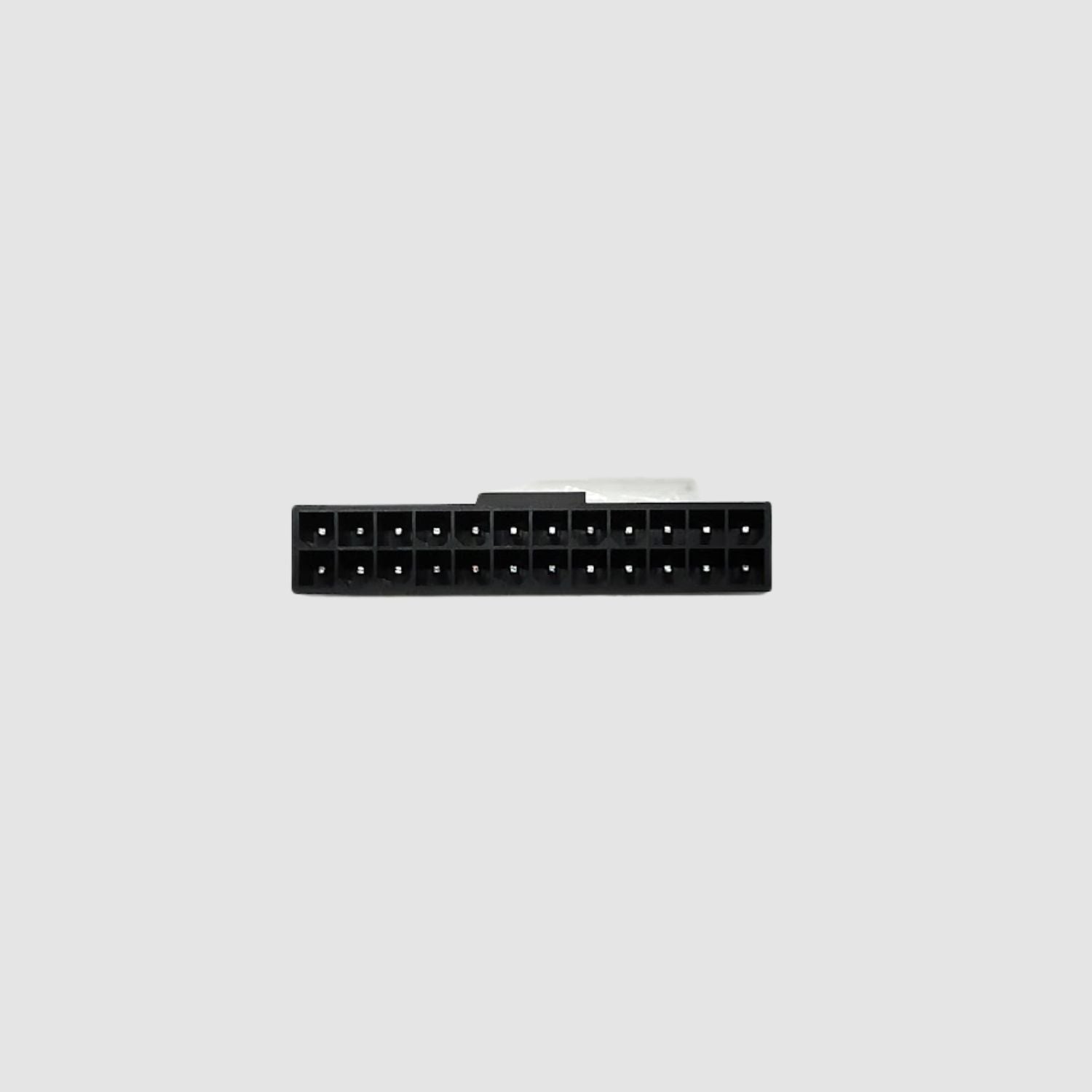

Power Connector ,PH4.2mm,DIP Type, Vertical Type |
| Component Type |
Receptacle |
| Orientation |
Vertical |
| Physical Characteristic |
| Case Material |
LCP,PA9T |
| Plating Material on Contact Area |
Tin Plated |
| Plating Thickness on Contact Area |
100u" |
| Pitch |
4.2 |
| Durability |
50 |
| Case Color |
Black |
| Electrical Characteristic |
| Current Rating |
10A(MAX) |
| Max. Voltage |
250V |
| Solder Process Type |
DIP |
| Environment Characteristic |
|
| RoHS/ Halogen Free(HF) Compliance |
RoHS, Halogen Free |
| Others |
|
| Packaging |
Tray |
