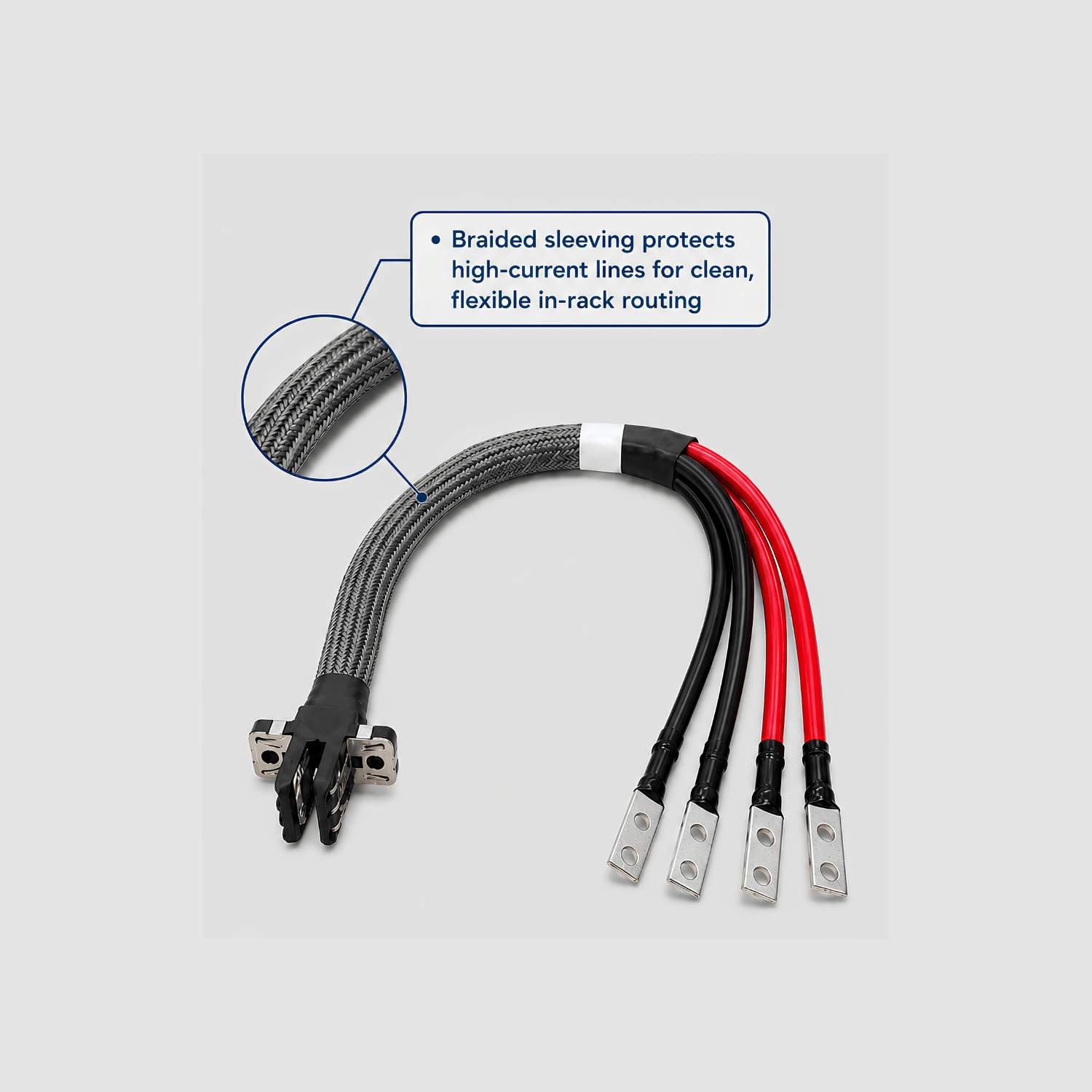

BusFlow® to 4-Lug Power Cable Assembly

Key Features

• BusFlow® connector interface to 4-lug termination
• Braided sleeving protects high-current lines for clean, flexible routing
• 2x red and 2x black 4AWG power cable structure
• Lug terminals support secure downstream fastening
• Designed for high-current rack-level power distribution

Key Specifications

• Current Rating: 170A
• Dielectric Withstanding Voltage: 1000V
• Operating Temperature: -40°C to 125°C
• Durability: 50 mating cycles
• Cable: 4AWG UL10198 wire
• Mating Busbar: 6.00 ± 0.20 mm silver-plated busbar
• Compliance: RoHS & HF compliant
