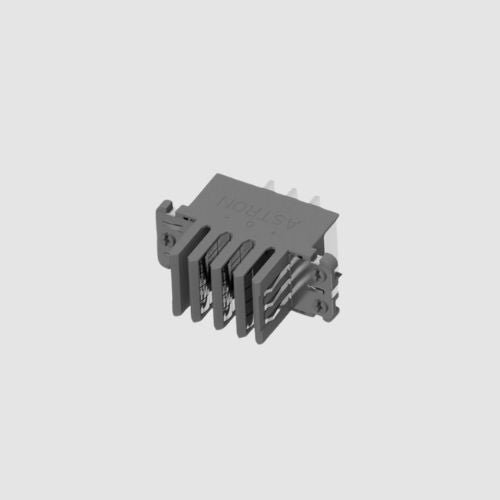

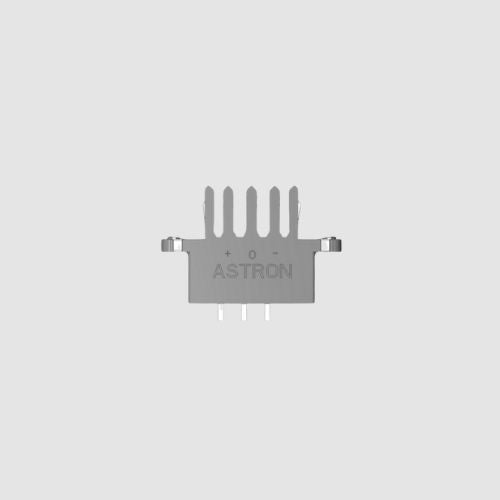

±400 VDC HPRv4 Rack Busbar Connector

Key Features

• Supports 400 VDC HPRv4 rack busbar interconnection
• Incorporates three busbar paths: P1(−), P0, and P2(+)
• Delivers 5,000 V dielectric withstand capability
• Uses silver-plated C18400 terminals and C1100 copper bars over nickel plating
• Rated for 50 mating cycles
• Operates from -40°C to 125°C
• RoHS and halogen-free compliant
• Features a UL 94 V-0 PA10T housing

Applications

• 400 VDC HPRv4 rack busbar interconnection
• High-voltage rack power distribution systems
• AI server rack power architectures, where applicable
